Mini-circuits 增值服务商
10年专注射频微波元器件产品

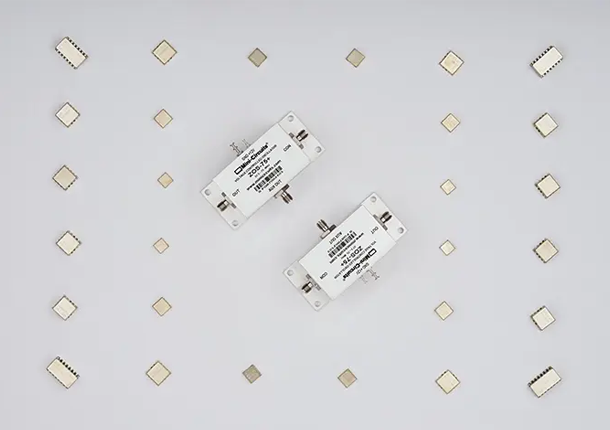

同轴和表面贴装式外壳样式
表面贴装封装，尺寸小至 0.2 x 0.2 英寸
经济高效的定制设计
覆盖 35 至 6840 MHz 的应用范围
导出Excel
| Model Number | Case Style | Freq. Low (MHz) | Freq. Hi (MHz) | Power Output (dBm) Typ. | Tune Voltage (V) Min. | Tune Voltage (V) Max. | Phase Noise (dBc/Hz) @ 1 kHz Offset, Typ. | Phase Noise (dBc/Hz) @ 1 0kHz Offset, Typ. | Phase Noise (dBc/Hz) @ 100 kHz Offset, Typ. | Phase Noise (dBc/Hz) @ 1 MHz Offset, Typ. | Pulling (MHz) pk - pk @ 12 dBr, Typ. | Pushing (MHz/V), Typ. | Tuning Sensitivity (MHz/V) Typ. | Harmonics (dBc), Typ. | Harmonics (dBc), Max. | 3 dB Control BW (MHz), Typ. | DC Voltage (V) | DC Current (mA) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ROS-6840C-119+ | CK1113 | 6740 | 6840 | 1 | 0.5 | 4.5 | -69 | -95 | -119 | -139 | 1 | 6 | 85-100 | -22 | -12 | 125 | 5 | 38 |
| ROS-4861C-119+ | CK1113 | 4859 | 4861 | 7.5 | 0.5 | 8 | -80 | -108 | -132 | -153 | 1.5 | 0.3 | 45783 | -23 | -16 | 200 | 8 | 37 |
| ROS-4415-119R+ | CK605 | 4214 | 4415 | 5 | 1 | 10 | -69 | -95 | -118 | -138 | 2.5 | 4.5 | 52-57 | -27 | -15 | 150 | 5 | 45 |
| ROS-4000-419R+ | CK605 | 3850 | 4000 | 5 | 0.5 | 10 | -74 | -99 | -120 | -140 | 5 | 1.5 | 24-36 | -26 | -16 | 13 | 5 | 42 |
| ROS-3900-419+ | CK605 | 3650 | 3900 | 4.5 | 0.5 | 12 | -72 | -96 | -118 | -138 | 2 | 4 | 34-40 | -20 | -12 | 100 | 5 | 40 |
| ROS-3800-119R+ | CK605 | 1900 | 3700 | 6 | 0.5 | 20 | -61 | -88 | -110 | -130 | 2 | 6 | 60-150 | -22 | -10 | 10 | 6 | 55 |
| ROS-3600-419R+ | CK605 | 3300 | 3605 | 8.5 | 0.5 | 8 | -71 | -97 | -118 | -138 | 3.5 | 2.5 | 57-78 | -20 | -15 | 130 | 5 | 46 |
| ROS-3570-319+ | CK829 | 3230 | 3570 | 6 | 0.5 | 16 | -75 | -99 | -120 | -140 | 6.5 | 0.7 | 27-33 | -22 | -13 | 100 | 5 | 40 |
| ROS-3360R+ | CK605 | 2120 | 3360 | 9 | 0.5 | 18 | -64 | -93 | -116 | -136 | 9 | 1.5 | 77-123 | -20 | -12 | 170 | 12 | 45 |
| ROS-3050C+ | CK1113 | 2635 | 3050 | 6.5 | 0.5 | 16 | -77 | -104 | -125 | -145 | 4.5 | 0.2 | 35-47 | -22 | -12 | 100 | 8 | 40 |
| ROS-3050-819+ | CK605 | 2150 | 3050 | 7 | 0.5 | 11.5 | -67 | -94 | -115 | -135 | 2 | 1.7 | 98-122 | -20 | -10 | 200 | 5 | 49 |
| ROS-3000-819+ | CK605 | 2000 | 3000 | 5.5 | 0.5 | 14 | -71 | -96 | -117 | -138 | 13.5 | 1.5 | 84-125 | -22 | -10 | 140 | 12 | 35 |
| ROS-2960C-119+ | CK1113 | 2500 | 2920 | 7 | 0.5 | 16 | -79 | -107 | -128 | -147 | 2 | 0.2 | 34-42 | -25 | -15 | 150 | 8 | 38 |
| ROS-2760C-119R+ | CK1113 | 2600 | 2760 | 4 | 0.5 | 18 | -85 | -113 | -133 | -153 | 0.8 | 0.3 | 46007 | -16 | -9 | 60 | 8 | 37 |
| ROS-2750+ | CK1113 | 2350 | 2750 | 5.7 | 0.5 | 14.5 | -78 | -105 | -127 | -146 | 2 | 0.3 | 32-42 | -23 | -12 | 120 | 6 | 35 |
| ROS-2700-1819+ | CK605 | 1300 | 2700 | 3.3 | 0.15 | 25 | -69 | -93 | -114 | -136 | 6 | 1.6 | 42-49 | -23 | - | 25 | 5 | 35 |
| ROS-2600C+ | CK1113 | 2130 | 2600 | 6.7 | 0.5 | 16 | -78 | -105 | -126 | -147 | 1.5 | 0.5 | 35-49 | -26 | -13 | 75 | 8 | 40 |
| ROS-2600-1119+ | CK605 | 1650 | 2600 | 6 | 0.3 | 28 | -75 | -102 | -122 | -142 | 2.5 | 1 | 25-60 | -18 | - | 30 | 10 | 53 |
| ROS-2500+ | CK605 | 1600 | 2500 | 7.5 | 0.5 | 14 | -62 | -89 | -111 | -131 | 18 | 2 | 70-118 | -16 | - | 20 | 12 | 28 |
| ROS-2490C+ | CK1113 | 2020 | 2490 | 7.2 | 0.25 | 16 | -79 | -107 | -128 | -149 | 2.5 | 0.4 | 30-40 | -32 | -15 | 45 | 8 | 40 |
| ROS-2490+ | CK605 | 2280 | 2490 | 8 | 0.5 | 10 | -80 | -104 | -124 | -144 | 1 | 1 | 30-37 | -20 | -11 | 140 | 5 | 38 |
| ROS-2450C+ | CK1113 | 2120 | 2450 | 7 | 0 | 15 | -80 | -107 | -128 | -148 | 3 | 0.3 | 28-35 | -23 | -12 | 150 | 6 | 34 |
| ROS-2432-119+ | CK605 | 1662 | 2432 | 5.5 | 1 | 28 | -73 | -100 | -123 | -143 | 6.5 | 1 | 23-49 | -18 | - | 230 | 10 | 30 |
| ROS-2350-519+ | CK605 | 1960 | 2350 | 7 | 0.5 | 15 | -80 | -106 | -126 | -146 | 5 | 0.3 | 34-37 | -18 | -10 | 115 | 5 | 40 |
| ROS-2170-1319R+ | CK605 | 1730 | 2170 | 7.5 | 0.5 | 12 | -76 | -103 | -124 | -144 | 4 | 0.3 | 52-60 | -17 | - | 30 | 12 | 34 |
| ROS-2160W+ | CK605 | 1160 | 2160 | 5 | 0.5 | 20 | -70 | -97 | -117 | -137 | 10 | 1.5 | 30-80 | -11 | - | 12 | 10 | 30 |
| ROS-2150VWR+ | CK605 | 970 | 2150 | 4 | 0.5 | 25 | -71 | -99 | -122 | -142 | 5 | 1 | 25-80 | -22 | - | 15 | 5 | 27 |
| ROS-2100-119+ | CK605 | 1350 | 2100 | 8.5 | 0.5 | 18.5 | -76 | -102 | -123 | -143 | 8.5 | 0.5 | 46-72 | -18 | - | 60 | 8 | 35 |
| ROS-1900+ | CK605 | 1450 | 1900 | 7 | 0.5 | 20 | -80 | -106 | -126 | -146 | 7 | 0.7 | 22-34 | -15 | -7 | 100 | 10 | 25 |
| ROS-1801C-119+ | CK1113 | 1800 | 1800 | 6 | 0.5 | 9.5 | -101 | -126 | -147 | -166 | 0.2 | 0.1 | 1.5 | -16 | - | 50 | 8 | 37 |
| ROS-1790-519R+ | CK605 | 1640 | 1790 | 6.5 | 0.5 | 12 | -82 | -107 | -127 | -147 | 4 | 0.7 | 19 | -28 | -20 | 50 | 5 | 36 |
| ROS-1707-119+ | CK605 | 1033 | 1707 | 8 | 0.5 | 24 | -74 | -100 | -121 | -142 | 10.5 | 2 | 32-59 | -15 | - | 100 | 10 | 35 |
| ROS-1700W+ | CK605 | 770 | 1700 | 9 | 1 | 24 | -72 | -99 | -120 | -141 | 7 | 0.7 | 26-65 | -25 | -9 | 50 | 12 | 35 |
| ROS-1645W-119+ | CK605 | 1200 | 1645 | 8 | 0.5 | 16 | -79 | -106 | -127 | -147 | 4 | 0.2 | 26-43 | -19 | -10 | 80 | 10 | 30 |
| ROS-1600W+ | CK605 | 800 | 1600 | 9 | 0.5 | 24 | -72 | -99 | -122 | -143 | 10 | 0.3 | 35-58 | -22 | -15 | 90 | 11.5 | 35 |
| ROS-1445-219+ | CK605 | 1145 | 1445 | 8 | 1 | 20 | -78 | -106 | -129 | -149 | 5 | 0.5 | 35-42 | -12 | - | 60 | 10 | 30 |
| ROS-1410+ | CK605 | 850 | 1410 | 7 | 0.5 | 11 | -73 | -99 | -119 | -138 | 15 | 1 | 50-80 | -8 | - | 1 | 12 | 25 |
| ROS-1150C-119R+ | CK1113 | 1146 | 1154 | 3 | 0.5 | 11 | -96 | -121 | -141 | -161 | 0.2 | 0.1 | 3 | -22 | -12 | 45 | 5 | 35 |
| ROS-1150-519+ | CK605 | 750 | 1150 | 6.5 | 0.5 | 13.5 | -75 | -99 | -121 | -141 | 5 | 1 | 38-45 | -20 | -12 | 70 | 5 | 35 |
| ROS-1121V+ | CK605 | 1060 | 1121 | 2.5 | 1 | 11 | -88 | -111 | -131 | -149 | 0.7 | 0.7 | 45882 | -11 | - | 10 | 5 | 30 |
| ROS-890CR+ | CK1113 | 875 | 890 | 6.2 | 0.5 | 11 | -97 | -125 | -145 | -165 | 0.3 | 0.2 | 5 | -19 | -12 | 60 | 8 | 35 |
| ROS-480+ | CK605 | 386 | 480 | 9.5 | 3 | 16 | -88 | -115 | -137 | -158 | 0.25 | 0.45 | 45881 | -20 | -13 | 30 | 12 | 31 |
| ROS-470-319+ | CK605 | 460 | 470 | 5 | 1 | 10 | -94 | -118 | -138 | -157 | 0.1 | 0.1 | 6 | -21 | -15 | 100 | 5 | 22 |
| ROS-435-119+ | CK605 | 425 | 435 | 2.5 | 0.5 | 10 | -93 | -118 | -139 | -159 | 0.2 | 0.1 | 45783 | -22 | -15 | 50 | 5 | 30 |
| ROS-386-119+ | CK605 | 295 | 386 | 9.5 | 4 | 16 | -90 | -117 | -138 | -158 | 0.2 | 0.4 | 10 | -23 | -12 | 18 | 12 | 31 |
| ROS-310-519+ | CK605 | 240 | 305 | 6 | 0.5 | 17 | -89 | -112 | -133 | -153 | 0.5 | 0.7 | 5.0-7.0 | -24 | -14 | 40 | 5 | 30 |
| ROS-244R+ | CK605 | 170 | 244 | 10 | 2 | 16 | -94 | -120 | -140 | -160 | 0.2 | 0.1 | 45787 | -18 | - | 50 | 12 | 34 |
| ROS-200-719R+ | CK605 | 144 | 200 | 9 | 0.5 | 16 | -95 | -122 | -142 | -161 | 0.1 | 0.1 | 5 | -20 | -10 | 50 | 12 | 33 |
| JTOS-1650+ | BK377 | 1200 | 1650 | 7 | 1 | 13 | -70 | -95 | -115 | -135 | 15 | 1.5 | 50-90 | -20 | -14 | 1 | 12 | 30 |
| JTOS-1550+ | BK377 | 1150 | 1550 | 9 | 0.5 | 18 | -72 | -100 | -122 | -142 | 14 | 1.2 | 20-45 | -18 | -10 | 100 | 12 | 32 |
