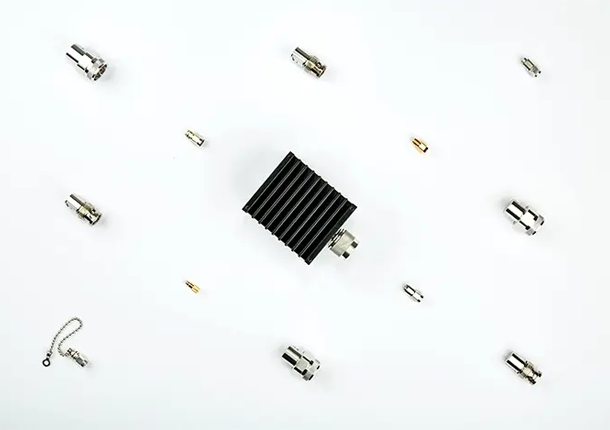

负载终端

负载终端

射频终端
可靠地消散 50 欧姆和 75 欧姆系统的信号功率，频率范围从直流到 110 GHz。可选多种公母连接器类型，包括 1.85mm、2.4mm、2.92mm、SMA、SMP、N 型和 DIN 1.0/2.3。

最高 250 瓦

优秀反射损耗

坚固的结构

模型表格 导出Excel
Model Number Case Style Impedance (Ω) Connector Type Connector Description Freq. (GHz) Low Freq. (GHz) High Return Loss (dB), Typ. @ 1 GHz Return Loss (dB), Typ. @ 2 GHz Return Loss (dB), Typ. @ 4 GHz Return Loss (dB), Typ. @ 6 GHz Return Loss (dB), Typ. @ 8 GHz Return Loss (dB), Typ. @ 12 GHz Return Loss (dB), Typ. @ 18 GHz Return Loss (dB), Typ. @ 20 GHz Return Loss (dB), Typ. @ 40 GHz Return Loss (dB), Typ. @ 50 GHz Return Loss (dB), Typ. @ 65 GHz Power Rating (W), Max.
TTRM-50+ LL1178 50 TNC Male DC 6 24 24 22 21 - - - - - - - 2
TERM-50W-183S+ LL2798-3 50 SMA Male DC 18 34 31 41 32 21 30 26 - - - - 50
TERM-50W-183N+ LL2798-2 50 N-Type Male DC 18 31 38 29 29 21 44 24 - - - - 50
TERM-25W-183S+ LL2798-1 50 SMA Male DC 18 33 32 32 25 28 24 29 - - - - 25
TERM-25W-183N+ LL2798 50 N-Type Male DC 18 33 36 25 31 30 36 22 - - - - 25
TERM-2W-183S+ LL3658 50 SMA Male DC 18 35 36 33 31 33 23 28 - - - - 2
SMPF-TERM50+ LL2145 50 SMP Female DC 18 47 46 45 35 30 24 22 - - - - 1
ROSE-50+ LL604 50 SMB Female DC 6 50 49 45 45 - - - - - - - 0.5
LOUIS-50 LL987 50 DIN 1.0/2.3 Male DC 2 42 36 - - - - - - - - - 0.125
KARN-50CN+ LL718 50 N-Type Male w/chain DC 8 46 44 40 37 35 - - - - - - 2
KARN-50-18+ LL718 50 N-Type Male DC 18 46 44 41 41 41 41 28 - - - - 2
KARN-50+ LL718 50 N-Type Male DC 8 46 44 40 37 35 - - - - - - 2
BTRM-75+ LL85 75 BNC Male-75 Ohm DC 1 33 - - - - - - - - - - 0.5
BTRM-50CN+ LL1188 50 BNC Male DC 4 41 37 26 - - - - - - - - 0.5
BTRM-50+ LL85 50 BNC Male DC 4 30 21 20 - - - - - - - - 0.5
ANNEQ-50X+ LL2699 50 SMA Male Quick-Turn DC 20 48 46 43 39 33 26 26 31 - - - 1
ANNEQ-50K+ LL2699-2 50 2.92mm Male Quick-Turn DC 40 38 36 31 29 27 26 26 23 25 - - 1
ANNEF-50V+ LL2592-1 50 2.4mm Female DC 50 45 44 42 43 45 38 31 30 20 24 - 1
ANNEF-50K+ LL2592 50 2.92mm Female DC 40 38 36 32 32 30 29 26 26 32 - - 1
ANNEF-50E+ LL2592-2 50 1.85mm Female DC 65 54.5 38 30.6 28.5 29.5 29.8 26.4 24.2 29.8 25.8 16.1 1
ANNEF-50+ LL2641 50 SMA Female DC 18 46 45 40 40 41 32 23 - - - - 1
ANNE-50X+ LL561 50 SMA Male DC 20 48 46 39 37 35 35 25 25 - - - 1
ANNE-50W+ LL3603 50 1.0mm Male DC 110 31.6 30.5 30.6 31.6 35.8 37.4 33.1 30.6 31.9 21.2 23.1 0.5
ANNE-50V+ LL2539 50 2.4mm Male DC 50 43 42 37 35 35 38 29 27 26 19 - 1
ANNE-50RP+ LL561 50 SMA Male Reverse Polarity DC 6 35 35 35 35 - - - - - - - 1
ANNE-50L+ LL561 50 SMA Male DC 12 48 46 39 34 31 27 - - - - - 1
ANNE-50K+ LL2699-1 50 2.92mm Male DC 40 40 38 35 32 30 30 30 27 20 - - 1
ANNE-50E+ LL2587 50 1.85mm Male DC 65 41 38 36 32 32 33 31 28 32 22 29 1
ANNE-50CN+ LL561 50 SMA Male w/Chain DC 18 50 46 41 40 38 45 30 - - - - 1
ANNE-50+ LL561 50 SMA Male DC 18 50 46 41 40 38 45 30 - - - - 1
