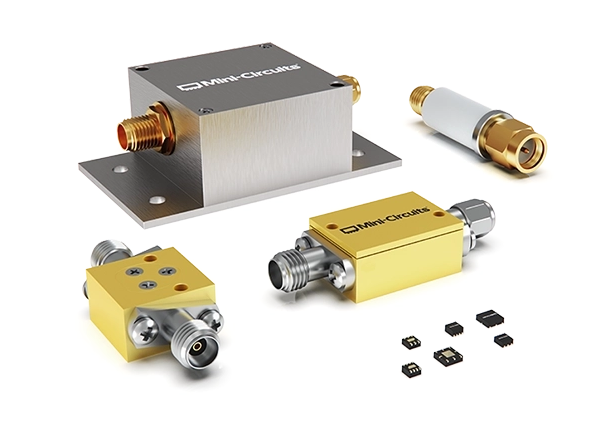

均衡器

电压可变和固定斜率型号

近 100 种均衡器型号，适用于从直流到 45 GHz 的广泛应用中的增益平坦化和频率相关损耗补偿。

同轴、表面贴装封装和裸晶

精确衰减斜率控制

50 欧姆和 75 欧姆设计

模型表格

导出Excel

Model Number	Impedance (Ω)	Freq. Low (MHz)	Freq. High (MHz)	Slope (dB) Typ.	Insertion Loss @ Freq. High (dB)	VSWR(:1) Typ.	Max Input Power (dBm)	Case Style
ZEQ-11-24K+	50	DC	20000	10.8	2.6	1.4	30	RA2937
ZEQ-10-44K+	50	DC	40000	9.4	2.7	1.4	28	UK2938-2
ZEQ-9-44K+	50	DC	40000	8.4	2.4	1.4	28	UK2938-2
ZEQ-9-24K+	50	DC	20000	9.2	2.1	1.3	33	RA2937
ZEQ-8-222S+	50	950	2150	7.9	6.6	1.1	20	H16
ZEQ-8-44K+	50	DC	40000	7.4	2.2	1.4	27	UK2938-2
ZEQ-7-44K+	50	DC	40000	6.5	2.3	1.4	27	UK2938-2
ZEQ-7-24K+	50	DC	20000	7.4	1.75	1.4	33	RA2937
ZEQ-6-44K+	50	DC	40000	6.0	1.7	1.4	28	UK2938-2
ZEQ-5-292-S+	50	1300	2900	4.7	1.5	1.1	20	H16
ZEQ-5-44K+	50	DC	40000	4.7	2.1	1.4	28	UK2938-2
ZEQ-5-24K+	50	DC	20000	5.3	1.65	1.3	30	RA2937
ZEQ-4-44K+	50	DC	40000	3.6	2.3	1.4	29	UK2938-2
ZEQ-4-24K+	50	DC	20000	4.2	1.7	1.3	33	RA2937
ZEQ-3-222S+	50	950	2150	4.2	1.7	1.1	20	H16
ZEQ-3-222N+	50	950	2150	4.2	1.7	1.1	20	H795-4
ZEQ-3-44K+	50	DC	40000	3.1	1.7	1.4	30	UK2938-2
ZEQ-2-24K+	50	DC	20000	2.4	1.6	1.2	33	RA2937
VEQY-10-63+	50	10	6000	9.9	1.6	1.21	31	FF704
VEQY-8-63+	50	10	6000	7.9	1.1	1.21	31	FF704
VEQY-6-63+	50	10	6000	6.3	1.1	1.2	31	FF704
VEQY-5-63+	50	10	6000	4.8	1.6	1.16	31	FF704
VEQY-4-63+	50	10	6000	4.4	0.8	1.23	31	FF704
VEQY-3-63+	50	10	6000	3	1.2	1.25	31	FF704
VEQY-2-63+	50	10	6000	2.3	0.6	1.18	31	FF704
VEQY-1-63+	50	10	6000	0.9	1	1.13	31	FF704
EQY-18-24-D+	50	6000	18000	18	2.2	1.22	33
EQY-18-24+	50	6000	18000	18	2.2	1.22	33	DQ3005
EQY-15-24-D+	50	6000	20000	15.7	1.3	1.2	31
EQY-15-24+	50	6000	20000	15.7	1.3	1.2	31	JV3002
EQY-12-24-D+	50	DC	20000	11.9	1.5	1.17	30
EQY-12-24+	50	DC	20000	12	1.4	1.09	30	MC1631-1
EQY-10-453-D+	50	DC	45000	10.2	1.8	1.22	28
EQY-10-453+	50	DC	45000	9.6	1.8	1.27	28	MC1630-1
EQY-10-63-D+	50	DC	6000	10.2	1	1.12	31
EQY-10-63+	50	DC	6000	10.2	1	1.12	31	MC1631-1
EQY-10-24-D+	50	DC	20000	10	1.1	1.28	33
EQY-10-24+	50	DC	20000	10.2	0.9	1.18	33	MC1631-1
EQY-9-453-D+	50	DC	45000	9	1.6	1.21	28
EQY-9-453+	50	DC	45000	8.6	1.5	1.22	28	MC1630-1
EQY-8-453-D+	50	DC	45000	8.2	1.2	1.14	27
EQY-8-453+	50	DC	45000	7.9	1.2	1.17	27	MC1630-1
EQY-8-63-D+	50	DC	6000	8.2	0.5	1.21	31
EQY-8-63+	50	DC	6000	8.2	0.5	1.21	31	MC1631-1
EQY-8-24-D+	50	DC	20000	8	1.1	1.31	34
EQY-8-24+	50	DC	20000	8.3	0.8	1.18	34	MC1631-1
EQY-7-453-D+	50	DC	45000	7.4	1.3	1.26	27
EQY-7-453+	50	DC	45000	7	1.3	1.23	27	MC1630-1
EQY-6-453-D+	50	DC	45000	6.5	1.1	1.25	28
EQY-6-453+	50	DC	45000	6.1	1.1	1.29	28	MC1630-1

< 1 2 >
